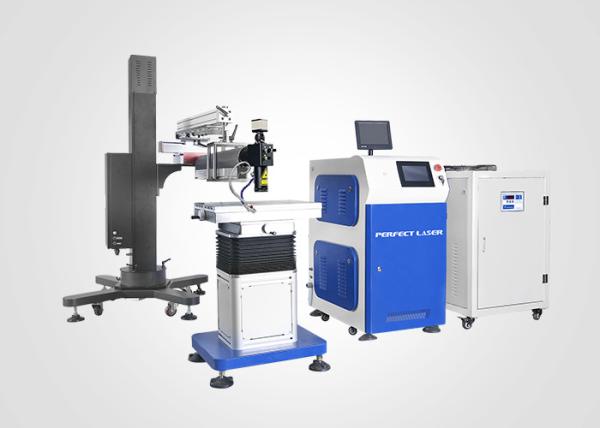

500W Laser Welding Machine High Temperature Resistant Four Wire System
(Model:PE-W600D)
Description
Since there are many oversize, large-scale mould and die, which is hard to move and repair. The big size increased the repairing difficulty. According to this situation, Perfect Laser specially designed this cantilever type laser welding machine for mould and die repairing.
The cantilever arm can be turned to all directions and angles. Even the mould can not be move, the cantilever arm can move freely, greatly solve the welding difficult, enhance the working efficiency.
Product Features
1. Adopt UK imported ceramic cavity, corrosion resistant and high temperature resistant, service life up to 8-10 years.
2. Welding arm can 360° rotating;Easy welding for large size materials and moulds.
3. Operator can handheld the laser pen to weld work pieces more freely.
4.Microscope Can 10 times enlarge the welding area (optional 15 times, 20 times), easy to locate the welding point.
5. CCD camera can photo-shot the welding details and transmit the signal into the LCD screen, make welding effect more clear and intuitive.
6. Prevent the dust and powder falling down into the welding point.Ensure welding effect.Make the welding connection even firmer and beautiful.
Application
The pen laser engraving machine is widely used in exquisite patterns, trademarks and text pen marking industry, Applicable materials: gold and silver, stainless steel, iron, aluminum, copper, plastic products and other materials.
Specifications
| Model | PE-W600D |
| Input voltage | Three-phase four wire system,380V±5% |
| Maximum input power | 16KW |
| All mirror | reflectivity≥99.7% |
| Power feedback type | current feedback |
| Condenser cavity | Gold single cavity design, double lamp single rod |
| Laser wavelength | 1.064μm |
| Beam divergence angle | ≤8mrad/m |
| Peak output power | 500W |
| Laser head adjustment | 360 degree |
| Pulse frequency | 1~150Hz |
| pulse width | 0.1~20ms |
| Current regulation | 50-500A |
| Beam expander | 3 times |
| Focal spot diameter | 0.2-2mm |
| Cantilever stretch length | 900mm |
| Cantilever up and down travel | 1000mm |
| Cantilever XY electric stroke | 150*150mm |
| Laser cavity length | 600mm |
| Table size | X*Y=500mm*350mm |
| Table travel | 200mm |
| Table XY hand travel | 250*120mm |
| Display mode | Coaxial microscope+CCDobservation |
| Positioning mode | Red |
Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
