1200W Small Desktop Handheld Pulse Metal Fiber Laser Welding Welder Machine
Model: PE-W1201
★ Machine Introduction of Fiber Laser Welder
The handheld pulse fiber laser welder is an innovative solution combining efficiency, precision, and portability. Built with a proprietary high-reliability laser source, it ensures long-lasting performance and exceptional quality. Designed for precision welding applications, the fiber laser welder features an intuitive interface and versatile parameter adjustments, allowing users of all skill levels to operate it with ease and achieve welding tasks quickly.
★ Machine Features of Fiber Laser Welder

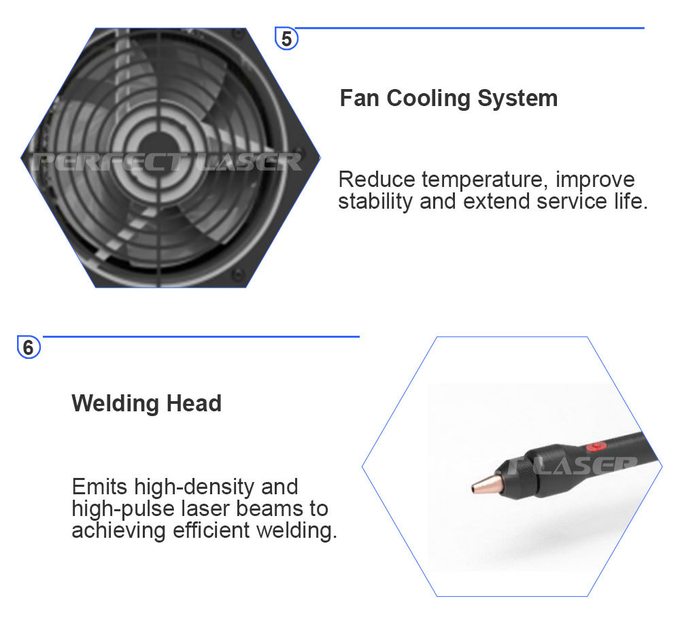

1. The fiber laser welder features a high-efficiency air cooling system with an adaptive fan that adjusts speed seamlessly, ensuring stable performance in extreme conditions from -20°C to 45°C.
2. The ergonomic handheld design allows flexible welding of various positions and shapes. Safe and easy to use, it requires no professional skills—just simple training to operate.
3. The handheld fiber laser welder machine is equipped with multiple safety features, including a safety lock and emergency stop switch, ensuring worry-free operation.
4. The compact and lightweight design allows the handheld metal laser welding machine to be easily transported to various job sites.
5. Independently developed high-reliability laser source ensures long-term stable operation, minimizing maintenance costs.
6. Intuitive knob-based parameter adjustment simplifies operation, making welding more efficient.
★ Appliaction of Fiber Laser Welder
The handheld fiber laser welder is widely used in advertising industry, household hardware, automobile manufacturing, shipbuilding, engineering machinery, etc.
★ Technical Data of Fiber Laser Welder
| Name | Handheld Desktop Pulsed Laser Welder |
| Model | PE-W1201 |
| Optical Parameters |
| Peak Power | 1200W |
| Pulse Width | 1-50ms |
| Power Adjustment Range | 1%-100% |
| Center Wavelength | 900-990nm |
| Reference Beam Center Wavelength | 630-670nm |
| Reference Beam Output Power | 0.6mw |
| Fiber Optic Cable Length | 2m |
| Fiber Optic Cable Diameter | 6.2mm |
| Electrical Characteristics |
| Photoelectric Conversion Efficiency | 50% |
| Power Supply Voltage Input | 220V |
| Power Consumption | 2500W |
| Operating Mode | Pulsed |
| Light Emission Interval | >Pulse Width |
| Duty Cycle | 1%-50% |
| Thermal Performance |
| Cooling Method | Air-cooled |
| Operating Temperature Range | -20℃-45℃ |
| Gas Requirements |
| Gas Flow Rate | 5L/min |
| Gas Type | Nitrogen/Dry Air |
| Gas Pressure | 0.4mpa |
| Outer Diameter of Gas Tube | 4mm |
★ Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
★ Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
|
|
1200W Small Desktop Handheld Pulse Metal Fiber Laser Welding Welder Machine Images
|
