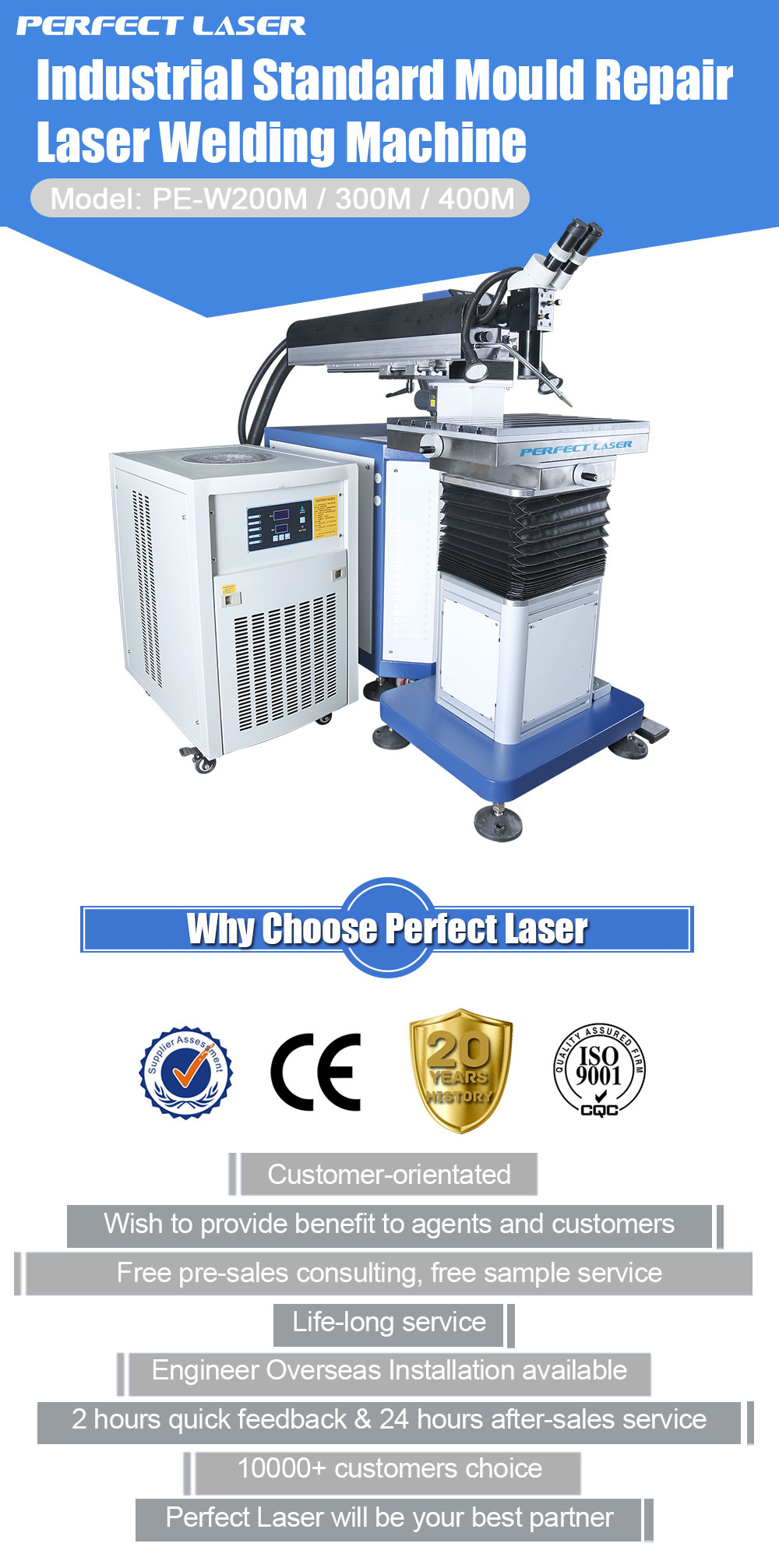

Portable High Quality Mold Repair Laser Welding Machine Metal Welding Laser Welding Machine
(Model: PE-W200M 300M 400M)
Product Introduction
A mold repair laser welding machine (also known as laser mold welding equipment) specially designed for the mold manufacturing industry, suitable for precision mold repair work in digital products, mobile phones, toys, automobiles, motorcycles and other fields. This device can efficiently utilize existing mold resources, significantly reduce production costs and accelerate work efficiency through the repair process. In addition, this technology can flexibly adjust mold design or size, helping to shorten the development process time of new products.
Product Features
Specifically designed for mould industry, introduct German technology, adopt unique stucture design, suitable for all kind of large, medium and small mould repair.
1.Adoptc UK ceramic light-gathering cavity, anti-corrosion, heat-resistance, chamber(8-10 years of life), more than 8 million times life of Xenon lamp;
2. Using the World’s most advanced automatic shading system, It eliminates the stimulation to the eyes in work;
3.Laser head can rotate 360 degrees, overall light path can rotate 360 degrees, electric lift up and down, driving front and back, especially suitable for all kinds of large, medium and small mould repair;

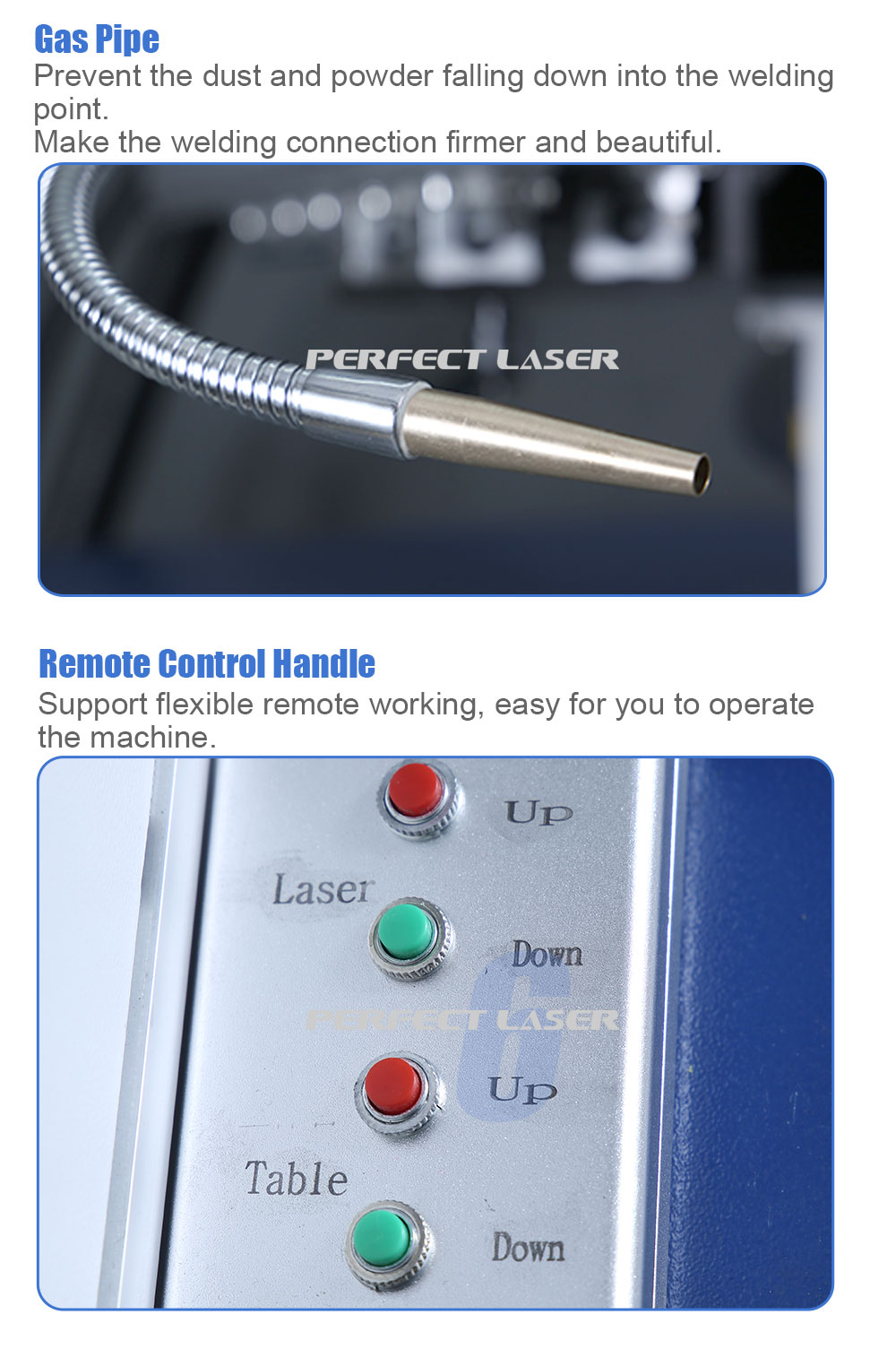

4.Parameter adjustment adopts intelligent remote control, simple and quick operation;

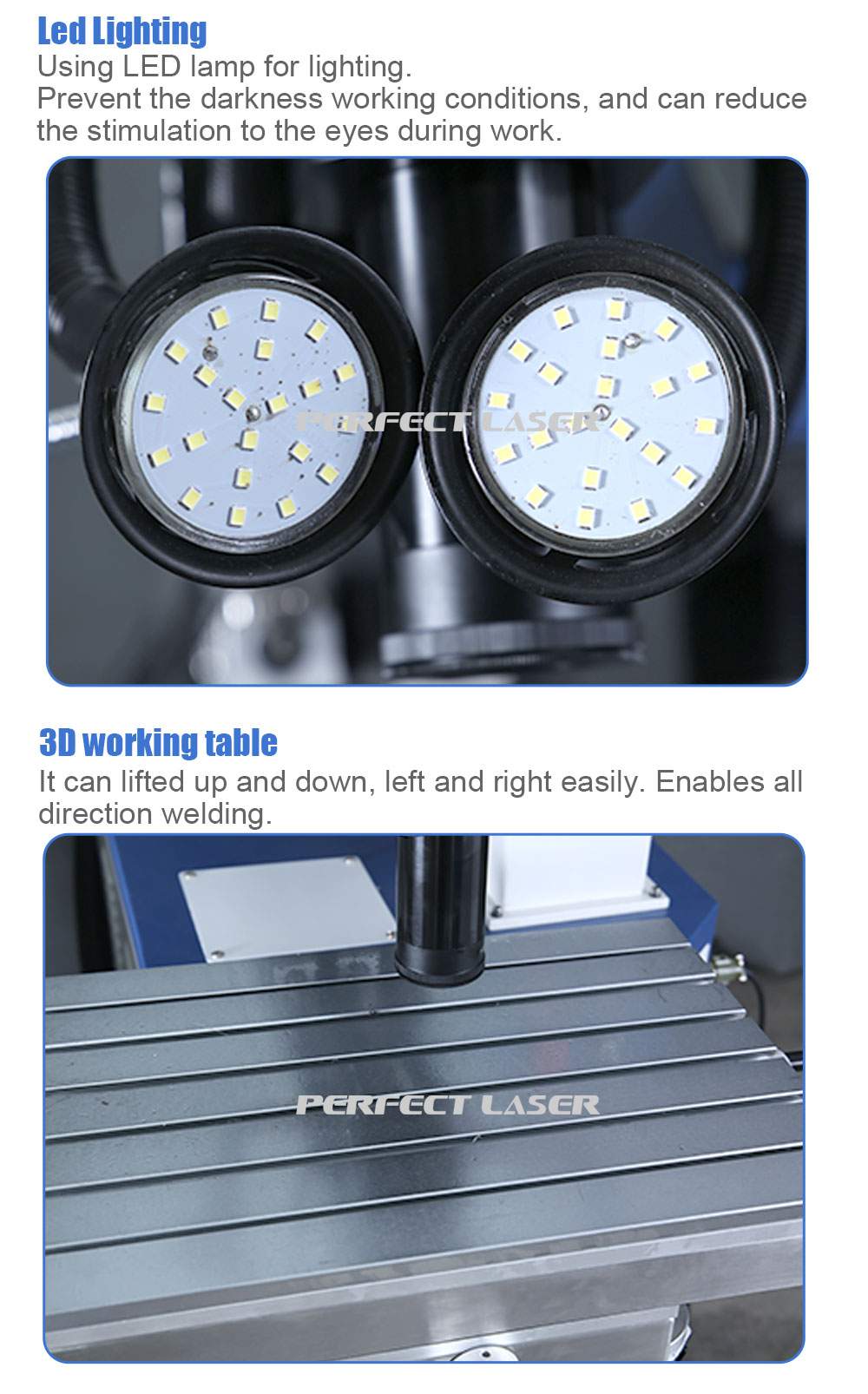

5.Three-dimensional moving workbench can be electric hoist;
6.Light spot size electric regulation.
Application
Laser welding machine for mould repair can weld a wide range materials including: high alloy steel, hot forging high alloy steel, nickel steel, high-grade steel, copper alloy, beryllium copper, high strength and toughness alumium alloy and other metal materials.
It's also called welding machine,welding machine price,laser welding aluminum,aluminum welding machine for sale,aluminum welding equipment,aluminum laser welding
Technical Parameter
| Type | PE-W200M | PE-W300M | PE-W400M |
| Three axis table | X=250mm,Y=180mm |
| Table capacity | ≤200KG | ≤200KG | ≤200KG |
| Machine battery | 220V±10%/50/60Hz | 220V±10%/50/60Hz | 380V±10%/50/60Hz |
| Laser type | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp | Nd:YAG pulse xenon lamp |
| Rotary Device | Optional |
| Spot adjusting range | 0.1～3mm | 0.1～3mm | 0.1～3mm |
| Peak wavelength | 1064nm | 1064nm | 1064nm |
| Pulse width | ≤20ms | ≤20ms | ≤20ms |
| Rated output power | 180W | 270W | 360W |
| Maximum laser power | 200W | 300W | 400W |
| Pulse frequency | ≤50Hz | ≤50Hz | ≤50Hz |
| Laser output focal length | 100mm | 100mm | 100mm |

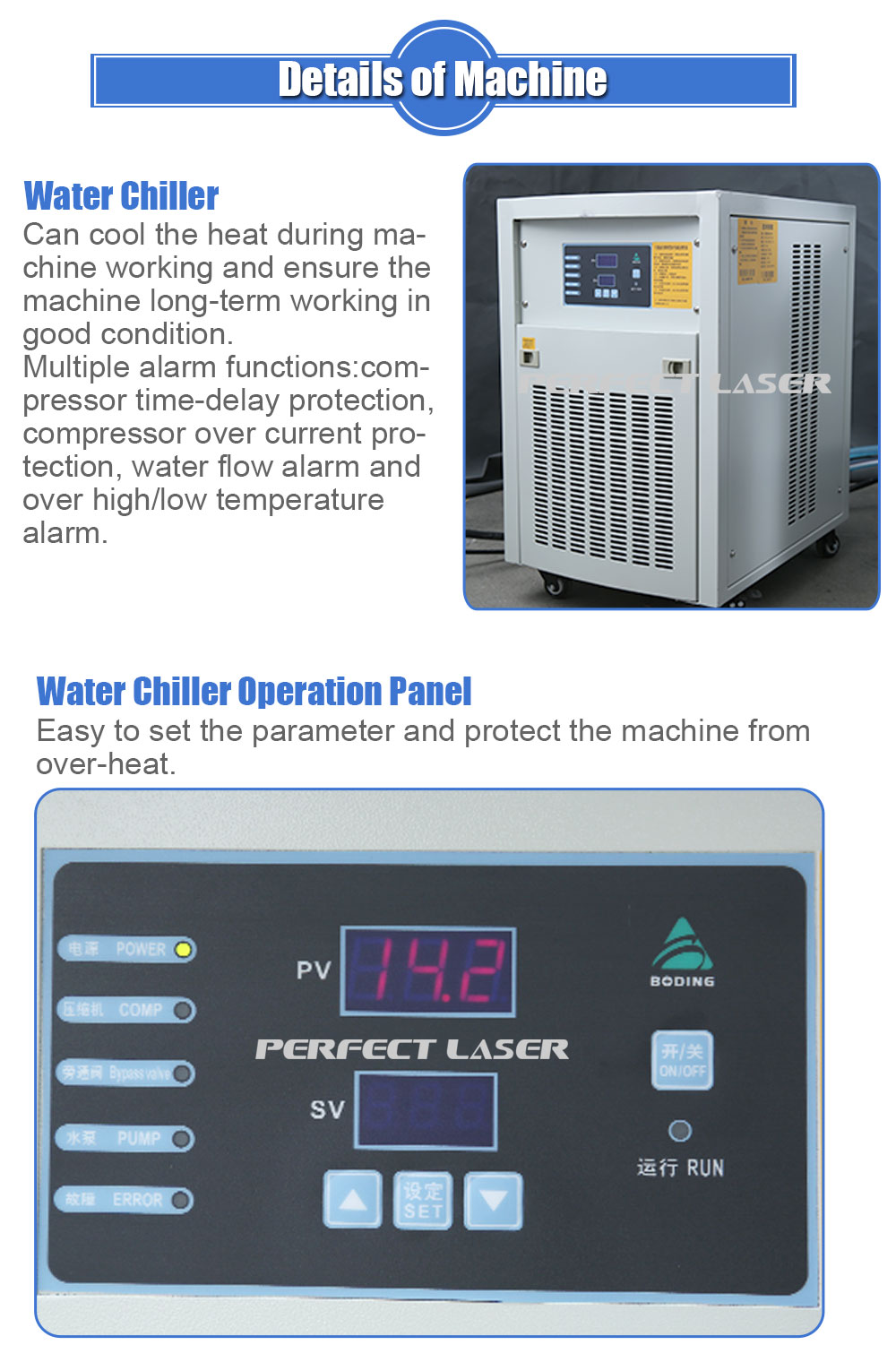

| Laser cooling | Water cooling | Water cooling | Water cooling |
| Monitor | Microscope(rotate 360º) | Microscope( rotate 360º) | Microscope(rotate 360º) |
| Protective gas | 1(argon) | 1 (argon) | 1 (argon) |
| Cold water capacity | 2700W | 3500W | 5000W |
| Wire diameter | 0.1mm~0.6mm | 0.1mm~0.8mm | 0.1mm~1.0mm |
| Dimension | Main engine 1250*580*1200mm Chiller 700*500*900mm | Main engine 1250*580*1200mm Chiller 700*500*900mm | Main engine 1250*580*1200mm Chiller 700*500*900mm Power 900*600*700MM |

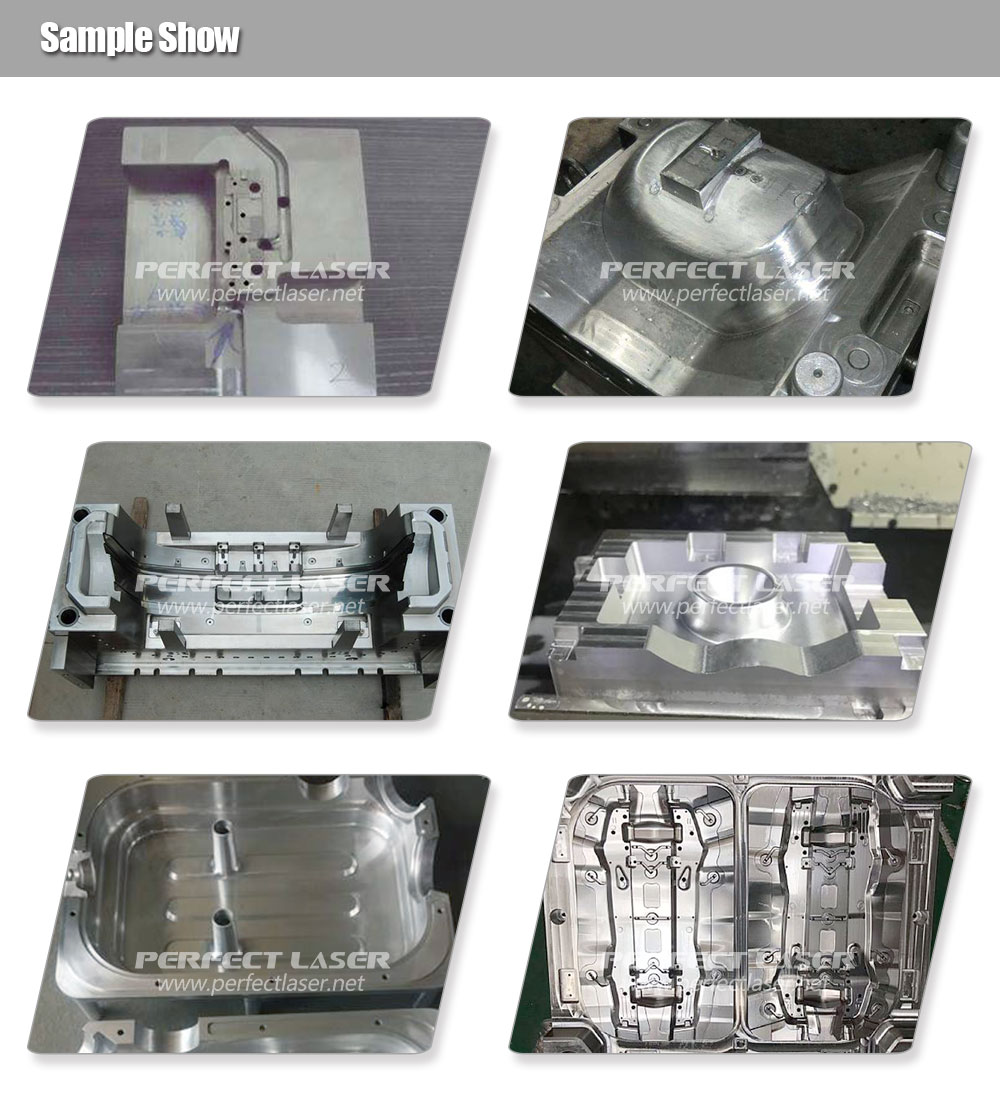

Sample Show
Packaging & Delivery
1. Prompt deliver at the very day.
2. Sophisticated and professional logistic agent.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Norway, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, Indonesia, Uruguay and many other countries.
